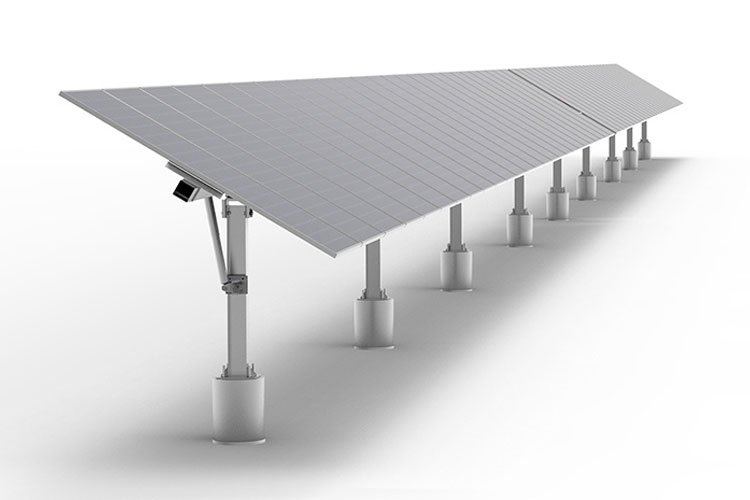

Smart Solar Tracking Mounting System
Edoyon smart solar tracking mounting system is designed for ground-mounted PV applications and is primarily based on horizontal single-axis tracking technology. The system combines high structural reliability, strong terrain adaptability, and intelligent operation and maintenance capabilities, making it suitable for flat, open areas as well as sites with challenging terrain conditions.
- Simple and reliable structure, with strong adaptability to complex terrain.
- Improved energy yield through automatic tracking of the sun’s position, increasing direct solar radiation received by the modules and enhancing overall power generation.
- Intelligent control system with remote monitoring and diagnostic functions, featuring intelligent protection modes for extreme weather conditions such as high winds, heavy snow, and flooding.
What Are the Advantages of Solar Tracking Mounting Systems?
Solar tracking systems can improve solar energy capture and PV system energy yield by automatically adjusting the orientation of solar modules according to the sun’s position. Compared with fixed-tilt mounting systems, tracking technology allows the modules to receive more direct solar radiation throughout the day, which can help increase overall power generation.
A solar tracking system can also provide intelligent positioning and protective control under certain operating and weather conditions. Depending on the system design, site conditions, and control strategy, the tracker can adjust the module angle to help reduce exposure to adverse weather conditions and improve system reliability.
Technical Specifications
| Applications | Flat terrain |
| Tracking Configuration | Single-row independent horizontal single-axis tracking system / Dual-row linked tracking system |
| Module Configuration | Single-row portrait configuration, with a maximum row length of up to 135 m |
| Drive System | Worm gear transmission with multi-point electrically linked drive |
| Tracking Range | ±60° |
| Materials | Hot-dip galvanized steel / Pre-galvanized steel / Zinc-aluminum-magnesium (ZAM) coated steel |
| Module Fixing | Bolts, rivets, and clamps |
| Wind Speed & Snow Load | Determined according to the project location; maximum wind speed up to 70 m/s (3-second gust) |
