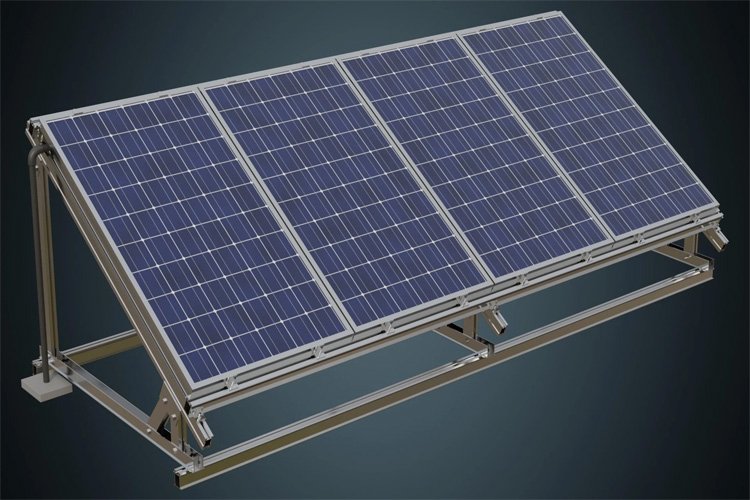

Photovoltaic Mounting System
Photovoltaic (PV) mounting systems are metal structures designed for placing, installing, and securing solar panels in a solar power generation system. Depending on the environment and installation requirements, photovoltaic brackets can be divided into: fixed brackets, tilt-adjustable brackets, automatic tracking brackets, and flexible brackets.
Accessories

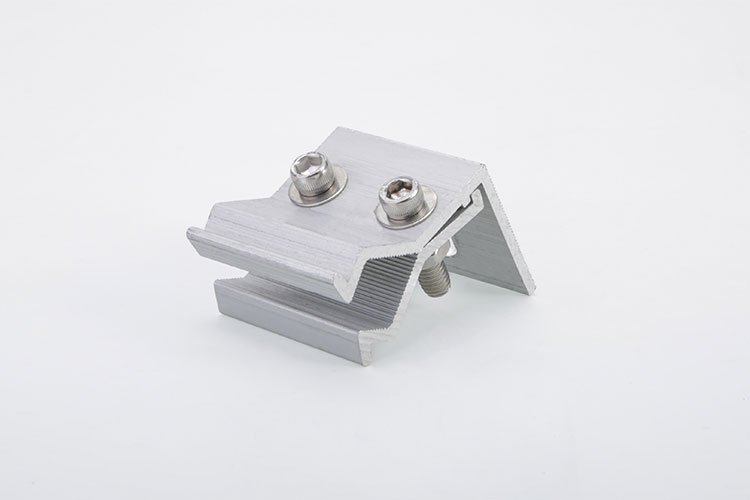

Type A Clamp

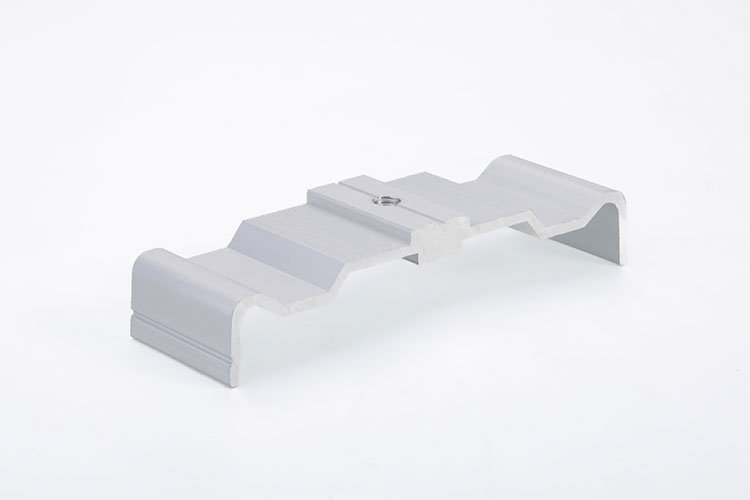

PV Mid Support Plate

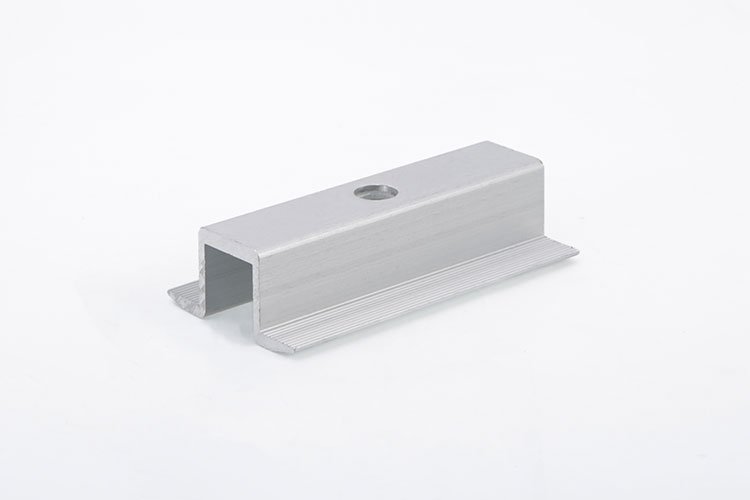

PV Mid Clamp

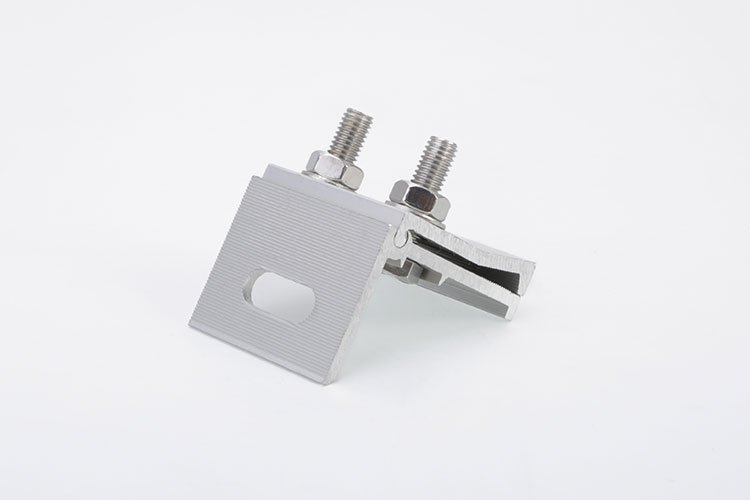

E-Type Clamp

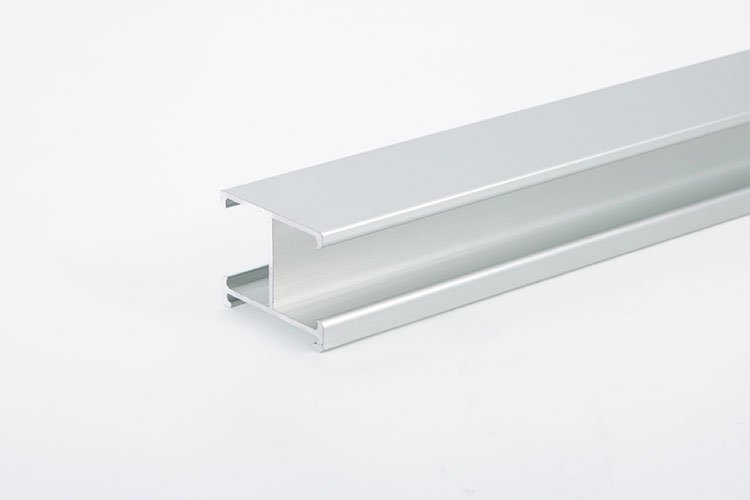

H-Type Rail

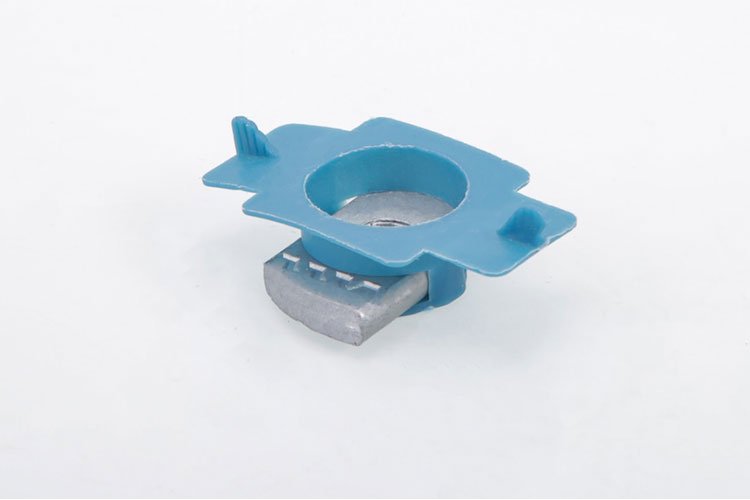

Plastic Wing Nut

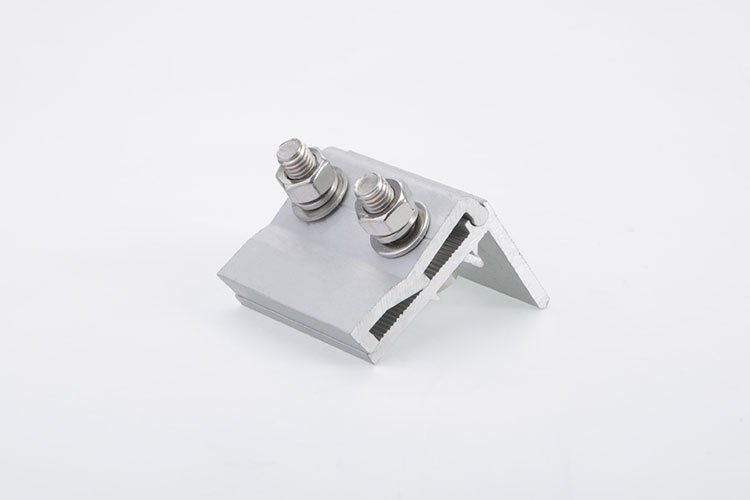

G-Type Clamp

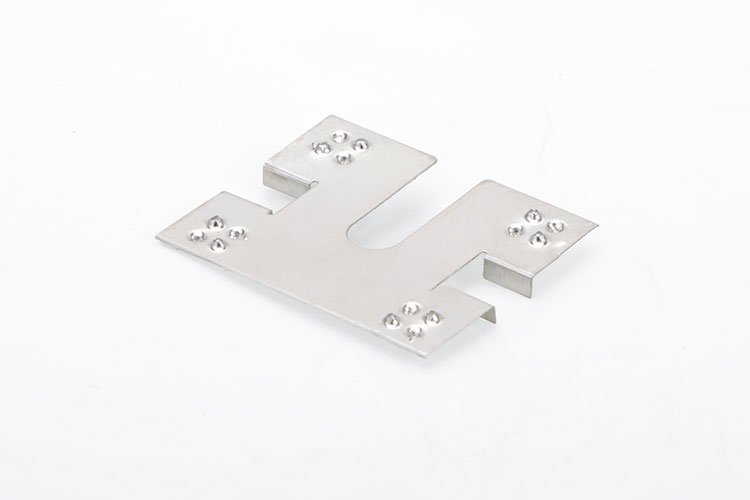

Grounding Plate
Your Reliable Photovoltaic Mounting System Manufacturer in China
Edoyon provides solar mounting systems for a wide range of photovoltaic installation projects, delivering stable and reliable solutions for securing and supporting PV modules. Our mounting systems are suitable for utility-scale ground-mounted solar farms, commercial rooftops, industrial buildings, agricultural PV projects, and other solar power applications.
Based on specific project requirements, Edoyon offers fixed-tilt solar mounting systems, solar tracking systems, and related mounting structures. We also provide technical support based on project conditions, including module dimensions and layout, system loads, installation angles, wind and snow loads, foundation types, installation environments, materials and surface treatments, connection methods, and relevant engineering documentation.
By selecting and configuring the mounting structure according to the specific requirements of each project, Edoyon helps customers develop solar mounting solutions that balance structural stability, durability, installation efficiency, and long-term operational reliability.
Fixed-Tilt vs. Solar Tracking Mounting Systems
| Fixed-Tilt Mounting System | Solar Tracking Mounting System | |
| Advantages | Simple structure, high stability, long service life, and relatively low maintenance costs. Fixed-tilt systems are adaptable to various site conditions and are particularly suitable for stable ground conditions and areas with moderate wind loads. | Compared to fixed photovoltaic (PV) mounting systems, the biggest advantage of tracking PV mounting systems is their high power generation efficiency. Because it can track the sun’s position in real time and automatically adjust the angle of sunlight on photovoltaic equipment, its power generation can be increased by about 20%. Furthermore, tracking systems are highly adaptable and can be customized to meet different needs. |
| Disadvantages | Fixed-tilt systems cannot actively adjust the module orientation according to the sun’s position. Under certain solar conditions, this may result in lower energy yield compared with tracking systems. Additional structural reinforcement may be required in areas subject to high wind loads or severe weather conditions. | Tracking systems have more complex mechanical, electrical, and control components, resulting in higher manufacturing, installation, and maintenance costs. Since the system continuously tracks the sun, additional structural measures may be required for projects exposed to high wind loads or other extreme weather conditions. |
| Applications | Suitable for areas with low wind speeds and stable geology, and can also be used on flat surfaces such as building roofs and parking lots. | It is suitable for areas with strong winds and abundant sunshine, and can improve power generation efficiency while maintaining stability in areas with strong winds. It can also be used in applications with complex terrain and special climatic conditions. |
